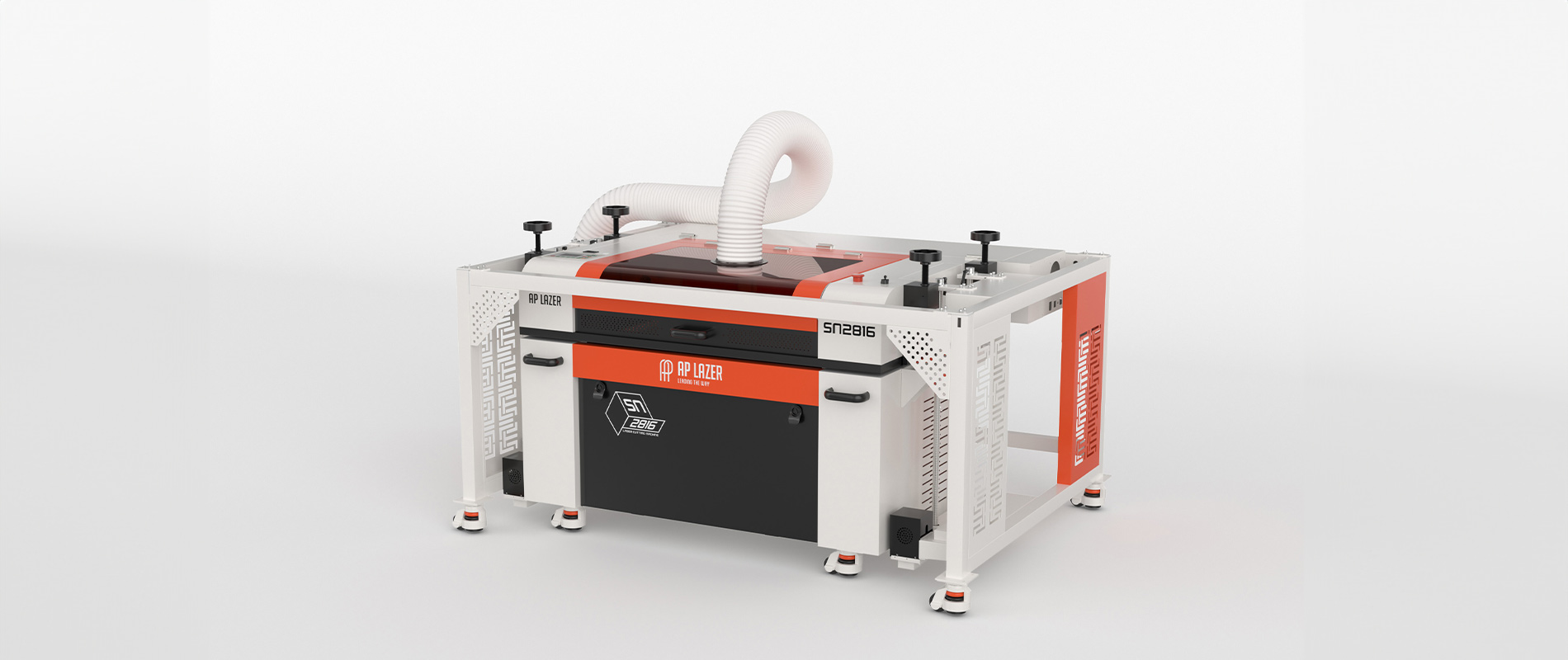

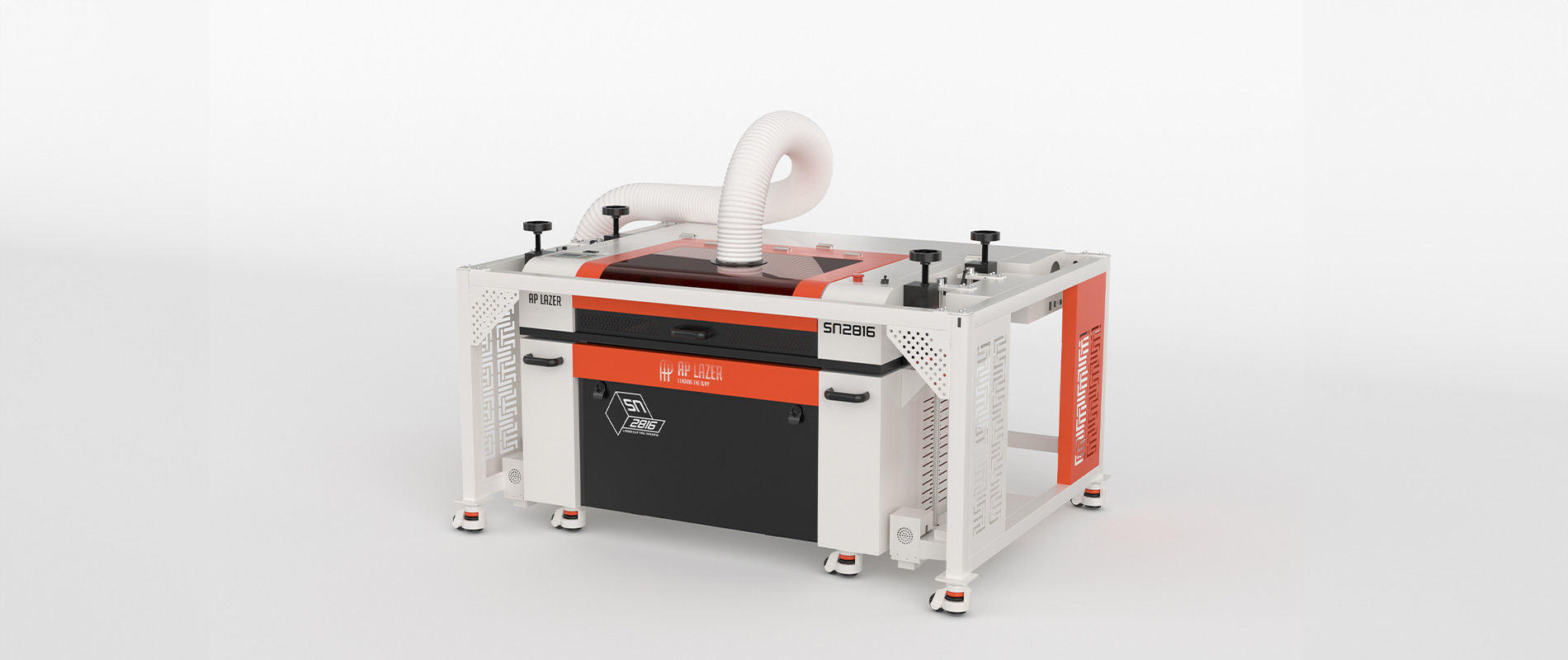

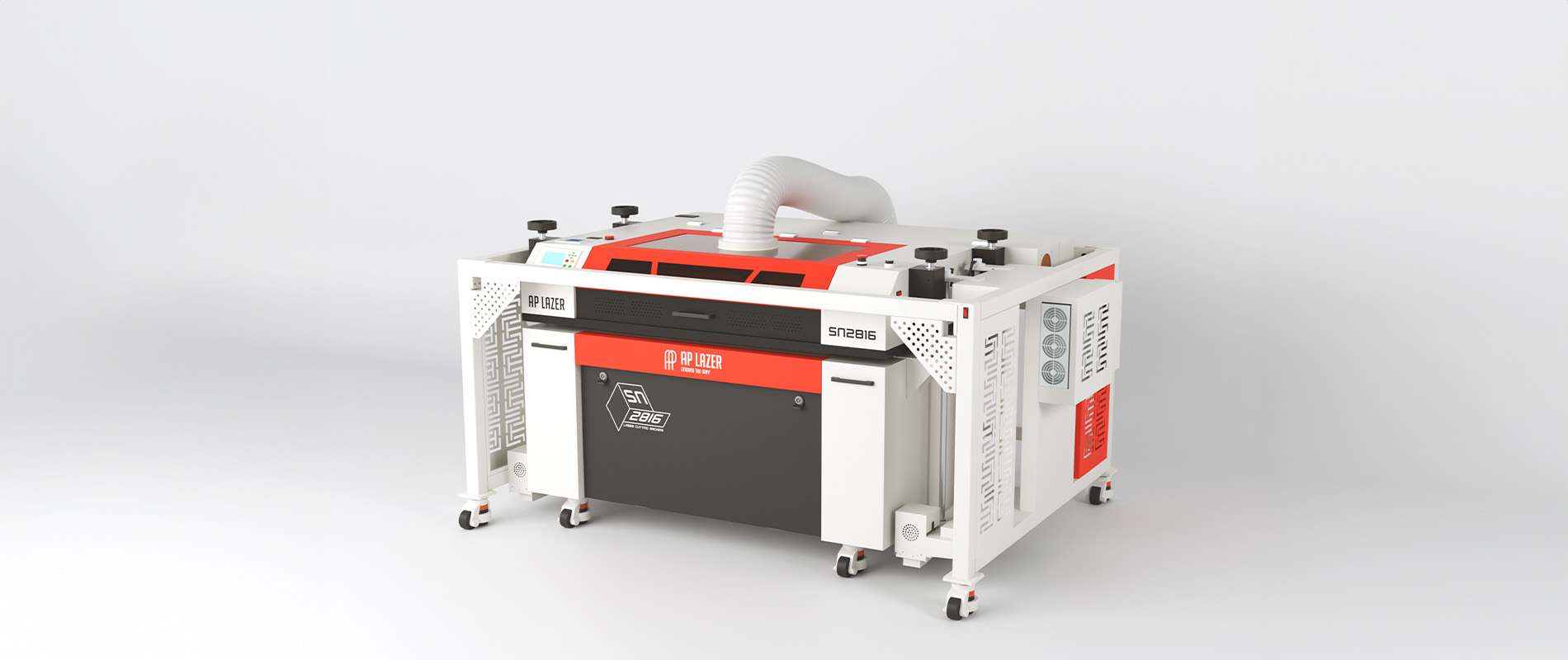

SN2816LR Laser Machine

SN2816LR

Laser Machine

With a small footprint and wide capabilities, the SN2816 LR is a great entry level option for any business or educational environment.

Life-changing business opportunities.

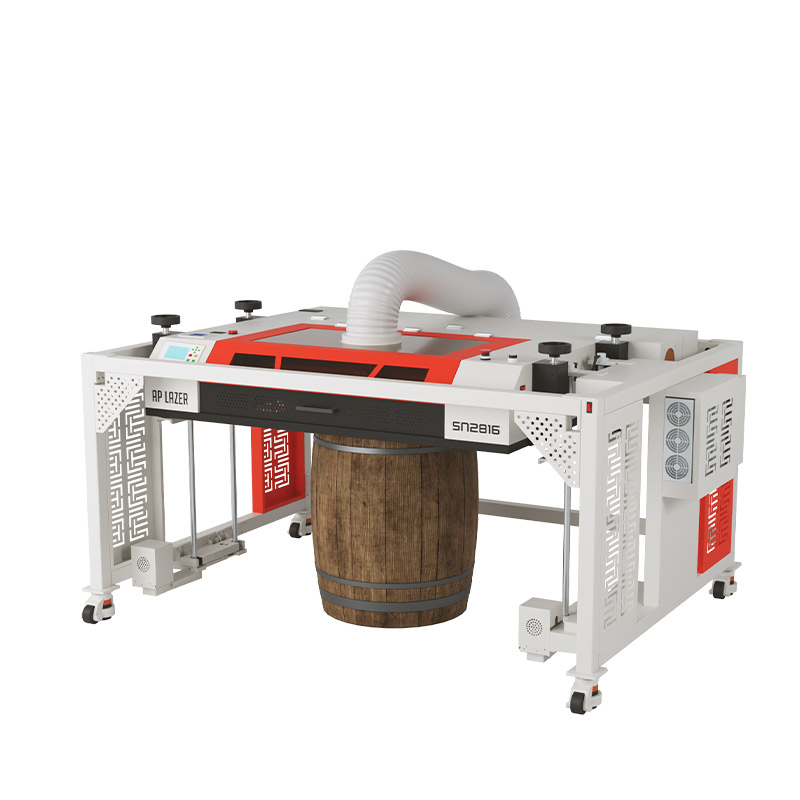

Our open architecture and low rider technology offers the versatility you need for endless product creation. Customize items of all sizes; as small as a peanut to a large granite memorial.

The SN2816LR Technical Details

Yes
Yes
28” x 16”
33"
7’ x 5’
USB
90 watts
Rated: 1050w | Peak: 1950w
110 Volts
0-50"/s
8,000 hrs
6"

The SN2816LR Dimensions

Machine Dimensions

Machine Size (in.)

63.75" L x 43" W x 9.75" H

Machine Weight (lbs)

272 lbs

Z-table Size (in.)

51.5" L x 29" W x 26" H

Z-table Weight (lbs)

203 lbs

Carriage Cart Size (in.)

TBD

Carriage Cart Weight (lbs)

TBD lbs

Mechanical Lift Cart Dimensions

Large Lift Cart (in.)

36.5″ L x 24.75″ W x 15.5″ H

Large Lift Cart (lbs)

284 lbs

Shipping Crate Dimensions

Machine Crate Size (in.)

55.75" L X 75" W X 44.25" H

Machine Crate Weight (lbs)

940 lbs

Get A Price Quote

Let’s get you a price for an AP Lazer machine!

"*" indicates required fields

Name*
What machine(s) interest you?*
This field is for validation purposes and should be left unchanged.

The SN2816LR Includes

Training + Support

Receive 8-hr virtual training, 24/7/365 lifetime technical support and access to our online community.

Accessory + Software Bundle

All accessories and software you need to get started creating priceless products.

Robust 3 Year Warranty

We offer a 3-yr warranty for parts, 2-years for the tube, and 1-year for the lens and mirror.

AP Lazer University

Gain access to exclusive informational videos available through our online learning portal.

Facebook User Group

Join our online group of machine users and technicians to ask questions, share advice and get tips.

Priceless Business Relationship

Our mission is to build priceless relationships and to meet the emotional needs of our customers.

The SN2816LR Key Features & Details

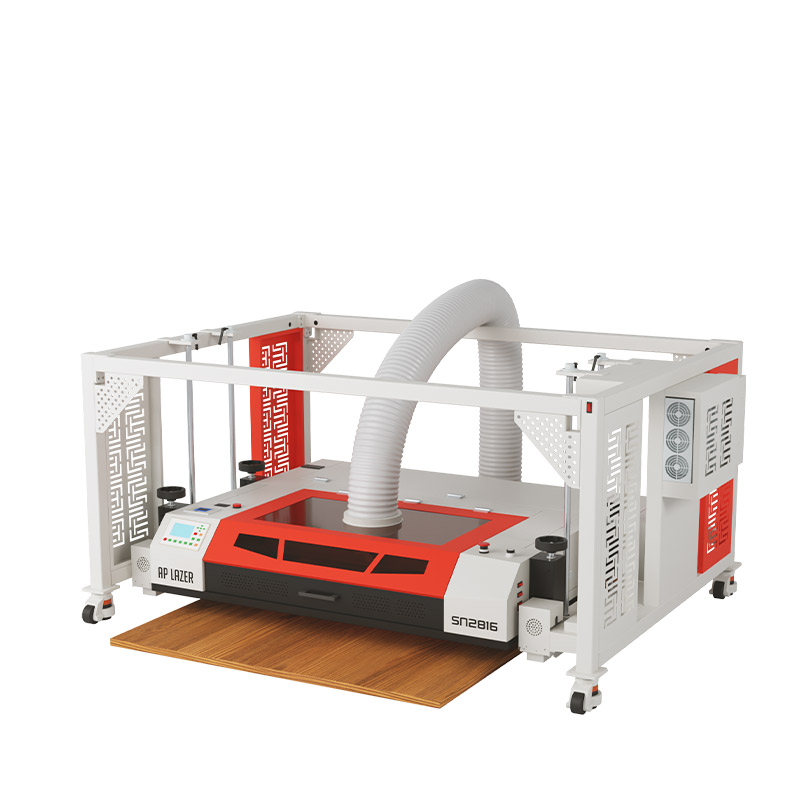

Removable Laser Top

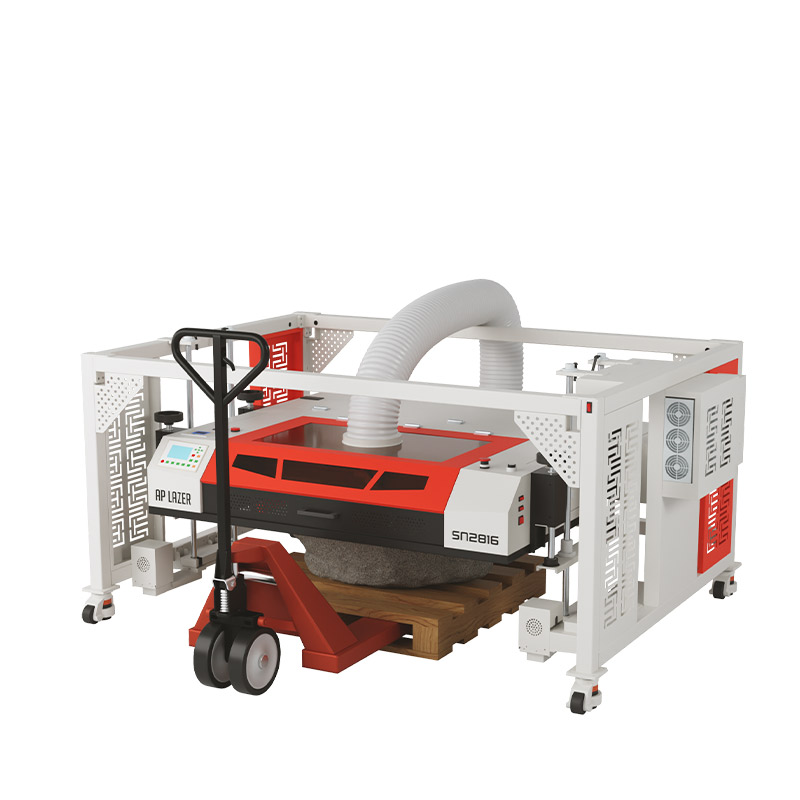

Place the SN2816LR top of the utility carriage to roll large objects beneath it to laser engrave.

Laser Tube

State of the art 90W glass laser tubes provide exceptional performance, advanced stability and are highly efficient. They are liquid cooled, economically replaceable, and easily aligned.

EZ Leveling System

The EZ Leveling System allows adjustment of the four corners of the machine independently and increases safety when working with heavier materials.

Speed/Power Control

Control both speed and power with the computer and/or the control panel on the AP Lazer. It is a percentage-based system that allows for corner compensation when using the cut mode operation. Speed is controlled by a literal system rather than a less reliable percentage-based system. The speed can be set from .001 inches per second. This system of speed control allows for ultimate precision.

Ventilation

Vents out smoke, dust and fumes. The AP Lazer is equipped with a blower and a fitted aluminum flexible vent that attaches to the top of the machine.

Axis Bearings

The X and Y-Axis are fixed on linear guide bearings. Linear guide bearings provide a precision glide, allowing for increased speeds while maintaining impeccable accuracy. With proper lubrication and normal operational use the bearings should last a minimum of three years.

110v Operation

AP Lazer plugs directly into the common 110v electrical outlet.

Motor Control

The AP Lazer system utilizes high-speed micro-stepper motors. The design of the stepper motor provides a constant holding torque without the need for the motor to be powered. Provided that the motor is used within its limits, positioning errors don’t occur.

Internal Cooling System

While most liquid cooled laser systems require an external chiller, AP Lazer Systems utilize a uniquely integrated, self contained cooling system.

Interface Software

The laser machine interface software works with the file types of numerous photo-editing and CAD software packages. (Including but not limited to: CorelDRAW Graphics Suite, Adobe Creative Suite, AutoCAD and other CAD software platforms.) The interface is compatible with Windows® XP/7/8/10 32-bit and 64-bit operating systems.

Advanced Memory Controller

The standalone controller with 128MB of independent memory allows for processing and storage of large sized files. The controller allows for computer free operation once the file has been downloaded to the AP Lazer.

Red Dot Diode

The red dot diode provides a visual aid that assists in finding the starting position and correct positioning of the material to be engraved or cut.

Starting Positions

The AP Lazer System allows you to select from 9 different starting positions in reference to the image or file to be engraved or cut, breaking the confines of a “home position.”

Resolution

While resolution is user controlled up to 1000 dpi, the actual engraving dpi is dependent upon the size of the condensing lens installed on the laser engraver. The standard 2 inch condensing lens has a point of impact of .003 inches, allowing for approximately 300 dpi. The AP Lazer has additional lens sizes available allowing for different levels of precision and detail.

Air Assist

Air assist integration provides protection to the condensing optics. It enhances the engraving and cutting performance by removing debris and restricting combustible gases from the engraving surface and reduces the chance of damage to your lens.

Operating Modes

The AP Lazer Systems allows for multiple modes of operation. Engrave (faster) mode will engrave bitmap images and/or vector files. Cut mode cuts or traces vector file formats.

Belts

The high quality rubber belts are ideal for prolonging the life of the stepper motor and pulley bearings by not applying a constant rigid torque on the components.

Included Accessories

Our Turnkey Packages come with all of the accessories and software you need to get started! No hidden costs or additional charges.

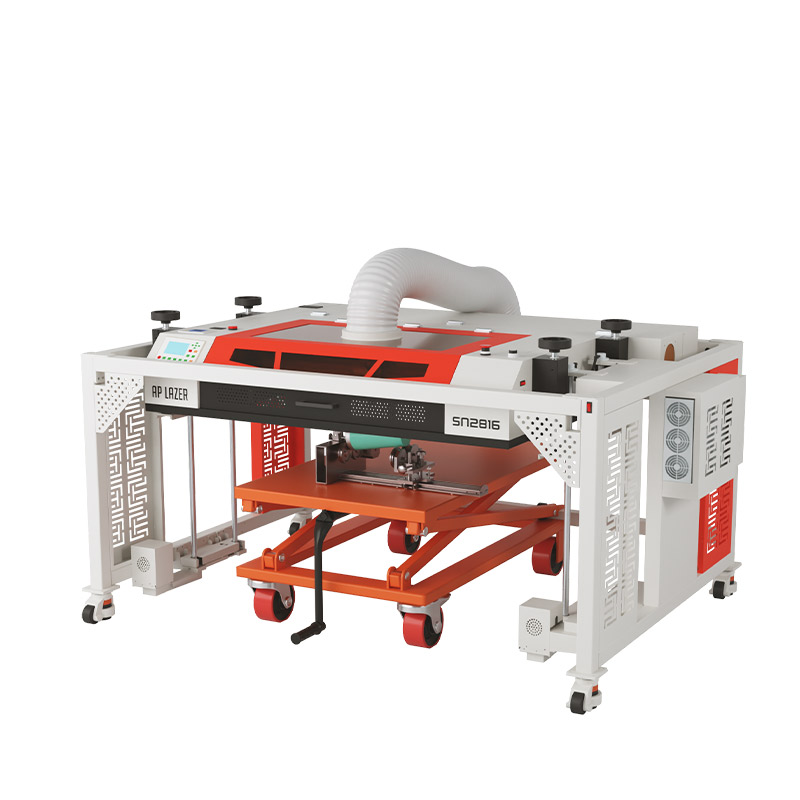

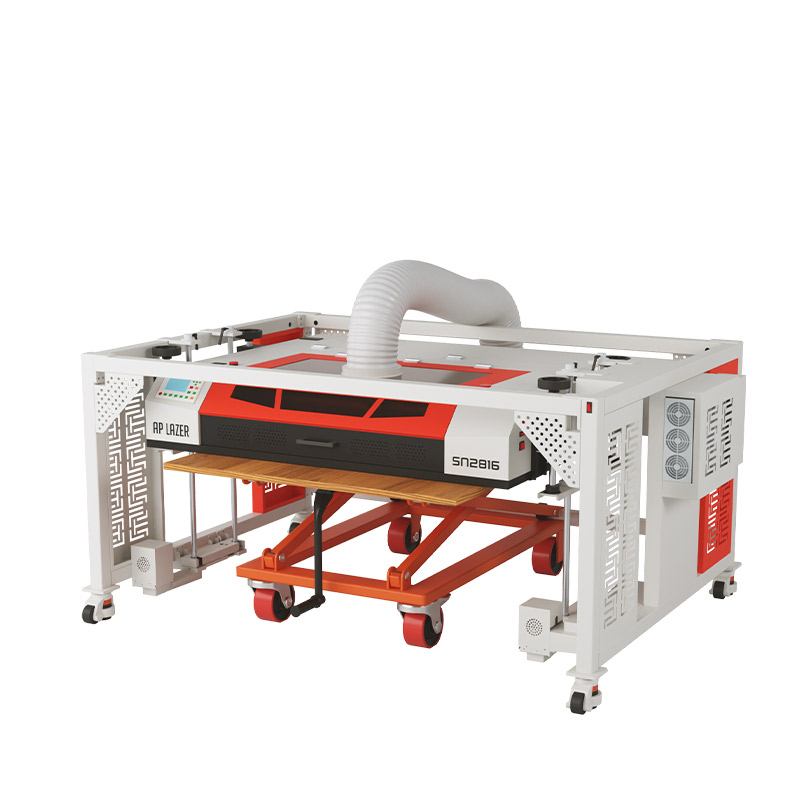

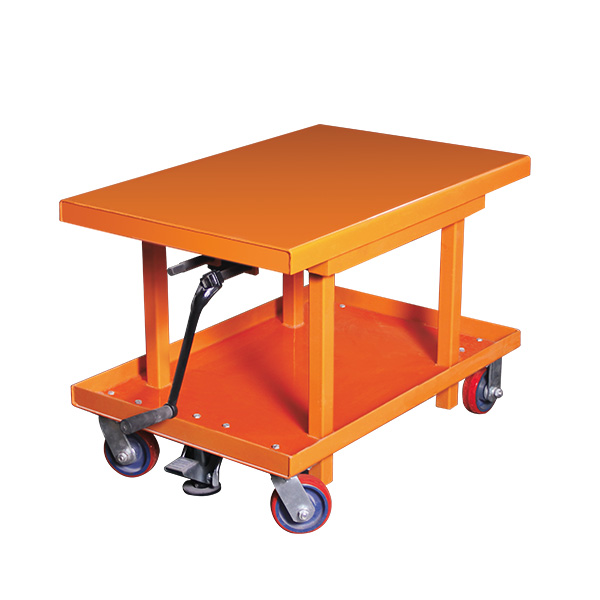

Mechanical Lift Cart for business machinesMechanical Lift Cart

Place large, bulky objects on the lift cart and roll directly beneath the laser head.

exhaust blower for laser machinesExhaust Blower

AP Lazers are equipped with a blower and 6 fitted aluminum flexible vent. If fumes are harmful, an additional filter is required, but not included.

safety glasses, cleaning cloth and case

Protective Eye Glasses

99.9% UV Protection from C02 laser beams.

rotary attachment

Rotary Table

Engrave cylindrical objects like wine bottles, stainless mugs, glasses, flashlights and more.

CorelDraw and PhotoGrav

Photo Processing Software

Process photos and a variety of artwork to produce high-quality engravings. Includes CorelDRAW Graphics Suite and PhotoGraV.

air assist accessory for laser machines

Air Assist

Provides protection to the condensing optics and enhances engraving/cutting performance.

photo of laptop

Laptop

Design and edit files for laser engraving and cutting.

Optional Accessories

Streamline your laser production with our selection of optional accessories.

chuck rotary attachment

Chuck Rotary

Ideal for engraving stainless tumblers and other cylindrical objects.
PRICE: $499

4 lens nozzles in box

Lens Kit Upgrade

Expand the range of your laser engraving capabilities with four additional lenses
PRICE: $299

laptop stand with photo of stand attached to laser machine

Laptop Stand

Keep your space organized with a clamp on laptop or tablet stand designed specifically for your AP Lazer.
PRICE: $69

3 Purex fume extractors

PurexTM Fume Extractors

Filters out harmful fumes from materials such as acrylic when working in an enclosed environment.
STARTING AT: $4,285

extended warranty logo

Extended Warranty

Extends the standard warranty on your AP Lazer for an additional two years.
PRICE: $1,995
