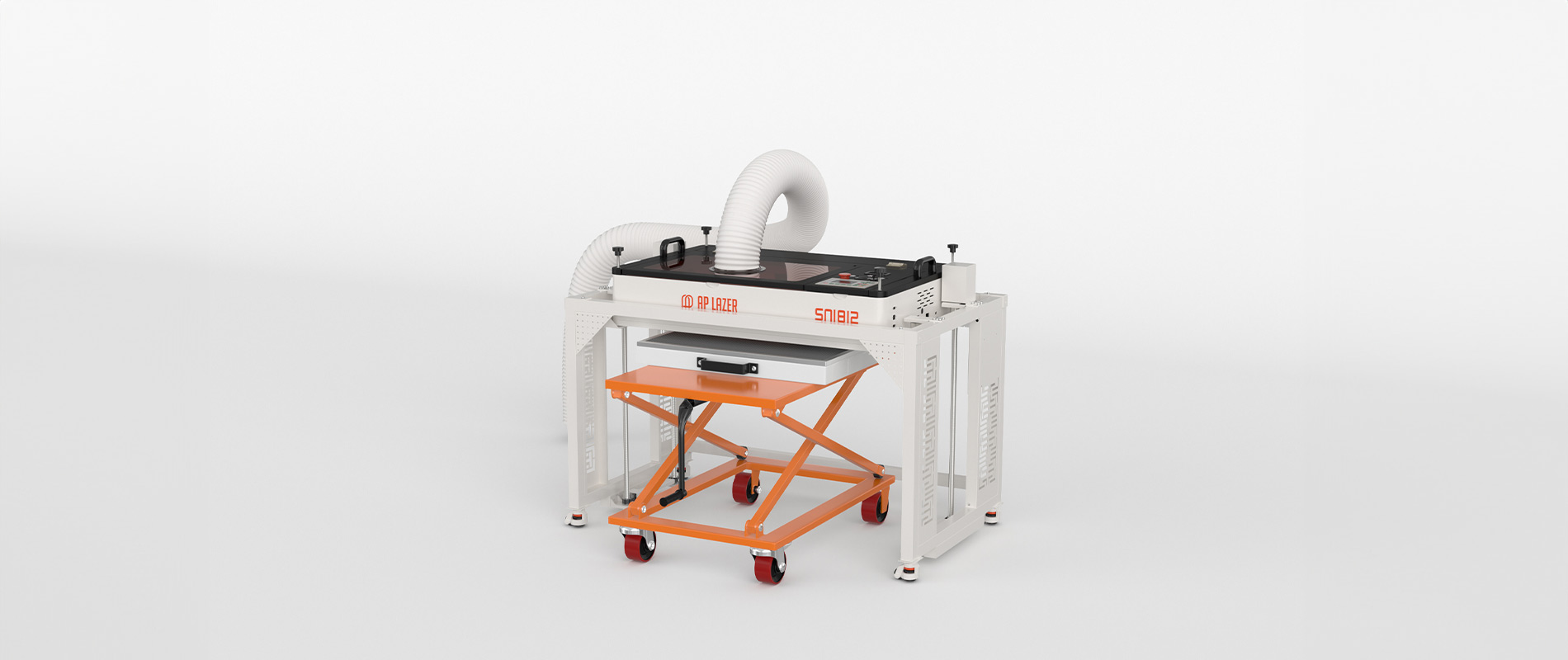

SN1812LR Laser Machine


Laser Machine

Loaded with an electric, adjustable z-axis, the SN1812 Low Rider is a laser machine like no other. Drop the laser beam to the floor and anywhere in between to streamline engraving and create priceless products with ease.

More function, more opportunities, more profit.

From lightweight sheets of material to large and bulky products, the SN1812 Low Rider will transform your engraving process.

The SN1812LR Technical Details

18" x 12"
4.9' x 2.7'
30 watts
Rated: 500w | Peak: 500w
110 Volts
1,500 hrs

The SN1812LR Dimensions

Machine Dimensions

Machine Size (in.)

39.5" L x 25" W x 7.75" H

Machine Weight (lbs)

88 lbs

Carriage Cart Size (in.)


Carriage Cart Weight (lbs)

TBD lbs

Mechanical Lift Cart Dimensions

Small Lift Cart (in.)

40″ L x 25″ W x 16″ H

Small Lift Cart (lbs)

138 lbs

Shipping Crate Dimensions

Machine Crate Size (in.)

33.5" L X 60" W x 42.125" H

Machine Crate Weight (lbs)

425 lbs

Get A Price Quote

Let’s get you a price for an AP Lazer machine!

"*" indicates required fields

What machine(s) interest you?*
This field is for validation purposes and should be left unchanged.

The SN1812LR Includes

Training + Support

Receive 4-hr virtual training, 24/7/365 lifetime technical support and access to our online community.

Accessory + Software Bundle

All accessories and software you need to get started creating priceless products.

Robust 3 Year Warranty

We offer a 3-yr warranty for parts, 1-year for the lens and mirror, and 6 months for the tube.

AP Lazer University

Gain access to exclusive informational videos available through our online learning portal.

Facebook User Group

Join our online group of machine users and technicians to ask questions, share advice and get tips.

Priceless Business Relationship

Our mission is to build priceless relationships and to meet the emotional needs of our customers.

The SN1812LR Key Features & Details

Removable Laser Top

Place the SN1812LR top of the utility carriage to roll large objects beneath it to laser engrave.

Laser Tube

State of the art 30W glass laser tubes provide exceptional performance, advanced stability and are highly efficient. They are liquid cooled, economically replaceable, and easily aligned.

EZ Leveling System

The EZ Leveling System allows adjustment of the four corners of the machine independently and increases safety when working with heavier materials.

Speed/Power Control

Control both speed and power with the computer and/or the control panel on the AP Lazer. It is a percentage-based system that allows for corner compensation when using the cut mode operation. Speed is controlled by a literal system rather than a less reliable percentage-based system. The speed can be set from .001 inches per second. This system of speed control allows for ultimate precision.


Vents out smoke, dust and fumes. The AP Lazer is equipped with a blower and a fitted aluminum flexible vent that attaches to the top of the machine.

Axis Bearings

The X and Y-Axis are fixed on linear guide bearings. Linear guide bearings provide a precision glide, allowing for increased speeds while maintaining impeccable accuracy. With proper lubrication and normal operational use the bearings should last a minimum of three years.

110v Operation

AP Lazer plugs directly into the common 110v electrical outlet.

Motor Control

The AP Lazer system utilizes high-speed micro-stepper motors. The design of the stepper motor provides a constant holding torque without the need for the motor to be powered. Provided that the motor is used within its limits, positioning errors don’t occur.

Internal Cooling System

While most liquid cooled laser systems require an external chiller, AP Lazer Systems utilize a uniquely integrated, self contained cooling system.

Interface Software

The laser machine interface software works with the file types of numerous photo-editing and CAD software packages. (Including but not limited to: CorelDRAW Graphics Suite, Adobe Creative Suite, AutoCAD and other CAD software platforms.) The interface is compatible with Windows® XP/7/8/10 32-bit and 64-bit operating systems.

Advanced Memory Controller

The standalone controller with 128MB of independent memory allows for processing and storage of large sized files. The controller allows for computer free operation once the file has been downloaded to the AP Lazer.

Red Dot Diode

The red dot diode provides a visual aid that assists in finding the starting position and correct positioning of the material to be engraved or cut.

Starting Positions

The AP Lazer System allows you to select from 9 different starting positions in reference to the image or file to be engraved or cut, breaking the confines of a “home position.”


While resolution is user controlled up to 1000 dpi, the actual engraving dpi is dependent upon the size of the condensing lens installed on the laser engraver. The standard 2 inch condensing lens has a point of impact of .003 inches, allowing for approximately 300 dpi. The AP Lazer has additional lens sizes available allowing for different levels of precision and detail.

Air Assist

Air assist integration provides protection to the condensing optics. It enhances the engraving and cutting performance by removing debris and restricting combustible gases from the engraving surface and reduces the chance of damage to your lens.

Operating Modes

The AP Lazer Systems allows for multiple modes of operation. Engrave (faster) mode will engrave bitmap images and/or vector files. Cut mode cuts or traces vector file formats.


The high quality rubber belts are ideal for prolonging the life of the stepper motor and pulley bearings by not applying a constant rigid torque on the components.

Accessories Included

Accessories shown below are included with all AP Lazer machine purchases. (Some packages differ based on each machine. Contact us for full details.)

photo of Utility Carriage

Utility Carriage

Utilize our patented removable laser top by removing it from the base and placing it atop the Utility Carriage. This configuration allows for lasering small to large items beneath.

photo of mechanical lift cart

Mechanical Lift Cart

Place large, bulky objects on the lift cart and roll directly beneath the laser head. For use when removable laser top is placed on the Utility Carriage. Weight capacity: 2,200 lbs.

Rotary Table 3 Phase 2nd Generation White Plug (Verify Compatibility)-0

Rotary Table

The Rotary Attachment allows you to engrave wine bottles, mugs, glasses, flashlights and more. Setup is as easy as placing your product on the Rotary Attachment, focusing the laser lens and printing to the laser machine.



A layout, editing, and control software for your laser machine. Create layouts, apply settings like power, speed, number of passes, cut order, etc., and send the result directly to your laser machine.

blower image for laser machine pagesExhaust Blower

AP Lazers are equipped with a blower and 6 fitted aluminum flexible vent. If fumes are harmful, an additional filter is required, but not included.

photo of laptop


Windows 10 laptop with a mouse and charger. Brands may vary, but min. specs are: 15″ LCD screens, Dual-Cores Multi-Threaded (Intel or AMD), Wi-Fi & Bluetooth enabled.

photo of safety glasses

Safety Glasses

Protect yourself from potentially hazardous debris and high power laser radiation.

photo of air assist accessory

Air Assist

Provides protection to the condensing optics and enhances engraving/cutting performance.

CorelDRAW X8 Suite-0

CorelDRAW Graphic Suite

Corel has it all: a quick, intuitive workflow, high-value digital content and design tools that let you do more than you ever thought possible! Create layouts for any laser job and please your customers using CorelDraw.

photo of PhotoGrav


Specifically designed for laser machines. Processes scanned photos allowing them to be lasered into a variety of materials.
