Dual Laser Engraver Machine: SN624ODLR

SN6240DLR

Every Material. Every Size. Always Supported.

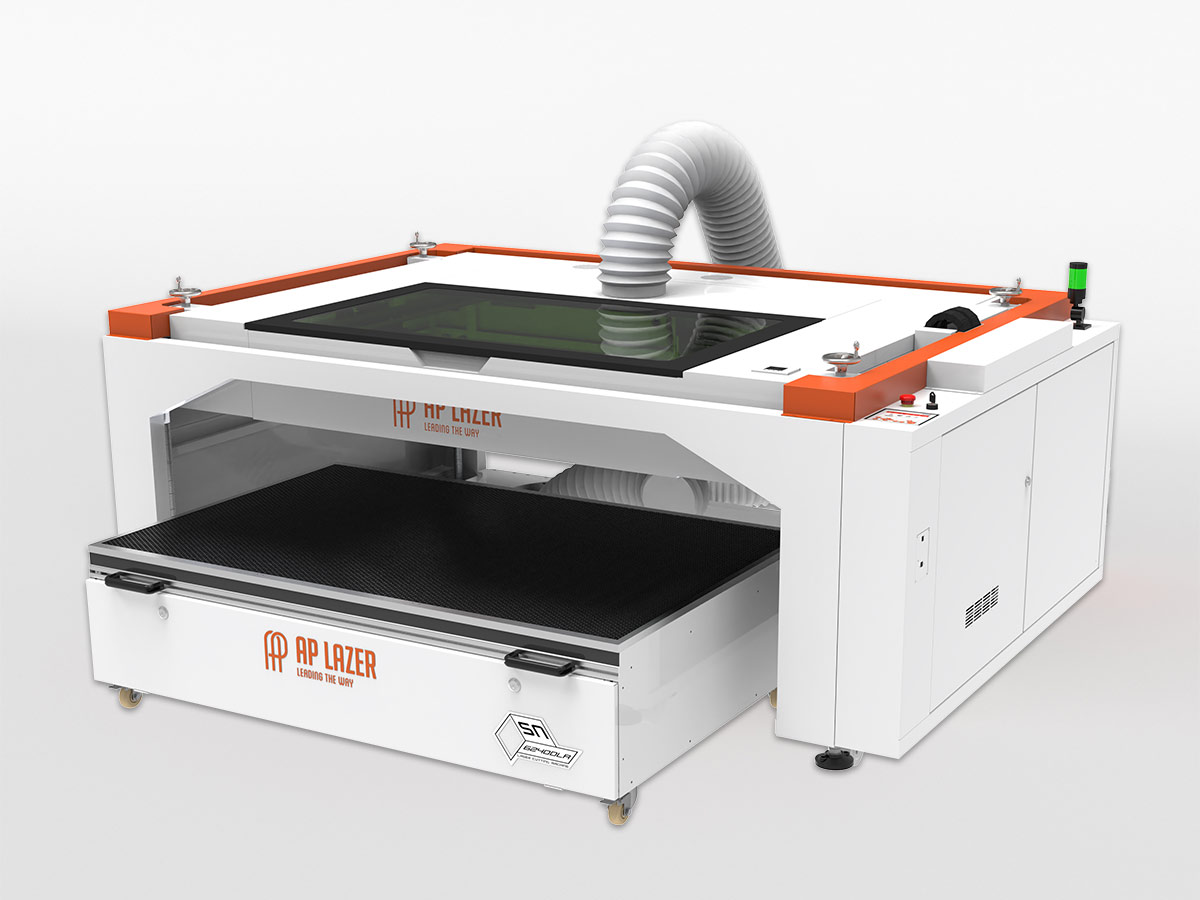

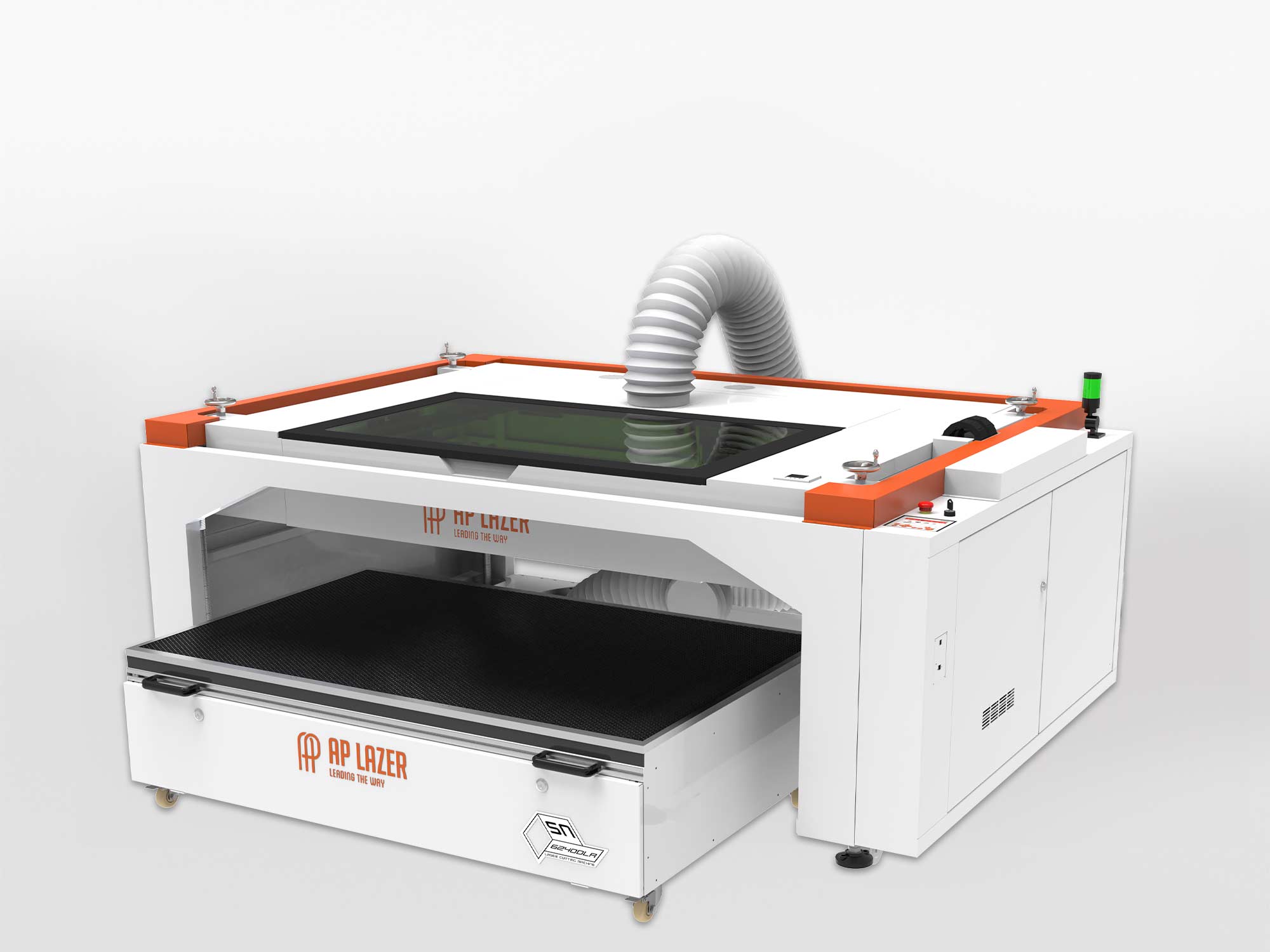

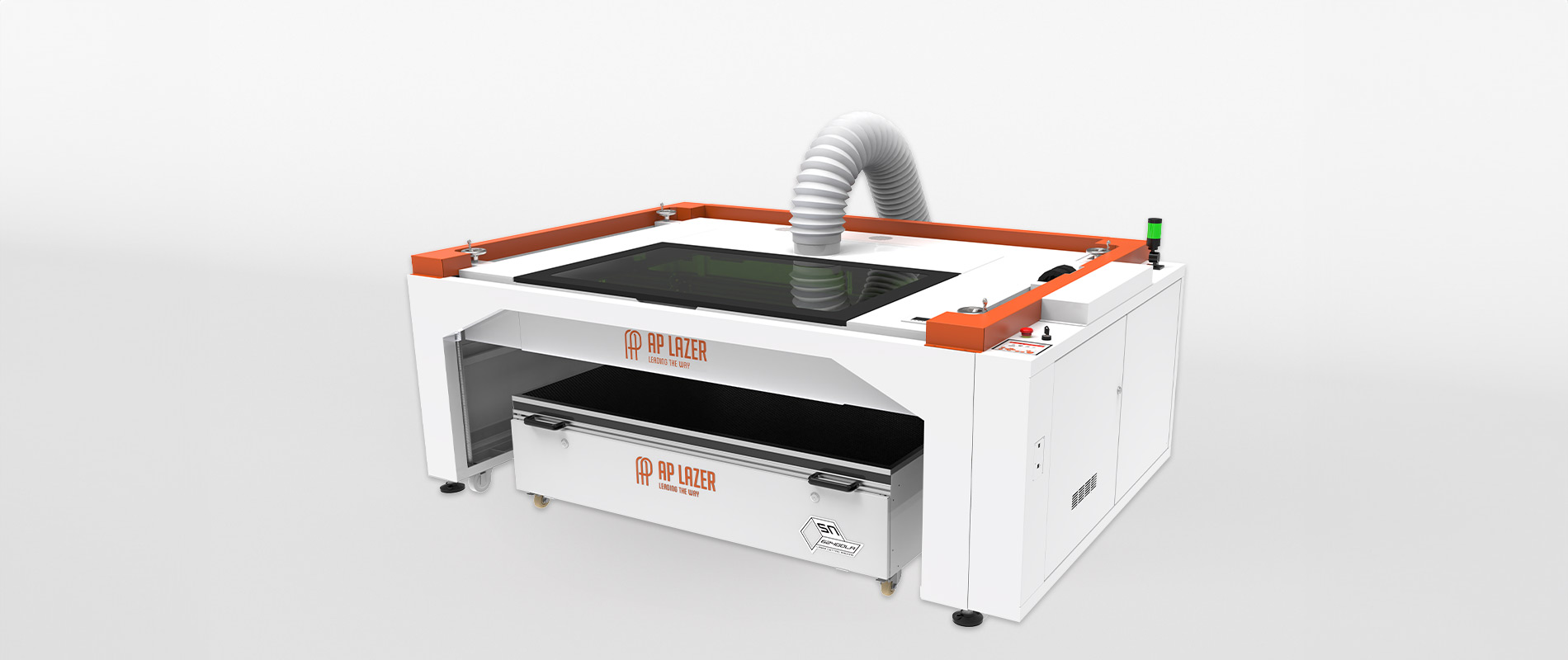

SN6240DLR: CO2 and Fiber Laser Machine

The world’s first dual head laser cutting and engraving machine. Equipped with both CO2 and MOPA fiber laser sources, our dual laser technology boasts exceptional precision and versatility. This dual laser machine enables you to cut, engrave, and mark a wide range of materials of any size.

Turnkey price: $52,995 (Financing available)

Get Catalog and Pricing Information

Contact Us for Details

Get Engraved & Cut Samples

Choose between brick, wood, leather, slate, metal, or acrylic

Request Now

See how AP LAZER works

Dual Head Laser Cutting Machine System

CO2 Laser Cutter Advantage

This U.S.-made RF CO2 laser delivers precise engravings and smooth cuts on wood, acrylic, glass, leather, and more. CO2 lasers are ideal for detailed designs and large-scale projects that demand accuracy and durability.

MOPA Fiber Laser Advantage

The MOPA fiber laser is an advanced system for engraving metals like stainless steel, aluminum, brass, and titanium. It can also engrave coated metals and a wide range of plastics.

Its adjustable pulse width enables high-contrast, colorful markings—even on challenging surfaces like anodized aluminum. It also handles fine detail on ceramics, natural stone, PCB boards, and more. This makes it ideal for premium, high-resolution work across diverse materials.

$52,999
60w CO₂ + 60w MOPA

$63,999
120w CO₂ + 60w MOPA

$1,899
100w MOPA Upgrade

Dual Laser Machine Technical Details

SN624ODLR

Turnkey Price $52,999
Engraving Area 62” x 40” (1575 x 1016 mm)
Machine Footprint 101.5” x 70.5”
Max Engraving Speed 79”/s
Power 240 V 30 A
Max Power Consumption 3800 W
60w Iradion CERAMICORE RF CO₂ $52,999
120w Iradion CERAMICORE RF CO₂ $63,999
Fiber Laser Power 60w
100w MOPA FIBER UPGRADE: $1,899

SN4836LR

Turnkey Price $44,995
Engraving Area 48″ x 36″ (1219 x 914 mm)
Z-axis Clearance 33″
CO2 Power 100 watts
Engraving Speed 0-50″/s
Carriage Footprint 8.5′ x 6′
Electrical Requirements 110V
Rated Power Consumption 1050W
Laser Tube Life 10,000 hrs
Exhaust Port 6″

SN4O24LR

Turnkey Price $35,995
Engraving Area 40″ x 24″ (1016 x 610 mm)
Z-axis Clearance 33″
CO2 Power 100 watts
Engraving Speed 0-50″/s
Carriage Footprint 8′ x 5′
Electrical Requirements 110V
Rated Power Consumption 1050W
Laser Tube Life 10,000 hrs
Exhaust Port 6″

SN624ODLR

Turnkey Price $52,999
Engraving Area 62” x 40” (1575 x 1016 mm)
Machine Footprint 101.5” x 70.5”
Max Engraving Speed 79”/s
Power 240 V 30 A
Max Power Consumption 3800 W
60w Iradion CERAMICORE RF CO₂ $52,999
120w Iradion CERAMICORE RF CO₂ $63,999
Fiber Laser Power 60w
100w MOPA FIBER UPGRADE: $1,899

SN4836LR

Turnkey Price $44,995
Engraving Area 48″ x 36″ (1219 x 914 mm)
Z-axis Clearance 33″
CO2 Power 100 watts
Engraving Speed 0-50″/s
Carriage Footprint 8.5′ x 6′
Electrical Requirements 110V
Rated Power Consumption 1050W
Laser Tube Life 10,000 hrs
Exhaust Port 6″

SN4O24LR

Turnkey Price $35,995
Engraving Area 40″ x 24″ (1016 x 610 mm)
Z-axis Clearance 33″
CO2 Power 100 watts
Engraving Speed 0-50″/s
Carriage Footprint 8′ x 5′
Electrical Requirements 110V
Rated Power Consumption 1050W
Laser Tube Life 10,000 hrs
Exhaust Port 6″

Included Accessories

Every SN6240DLR comes as part of a turnkey package. We’ll provide you with all the accessories and software you need to begin immediately. No hidden costs, no additional charges, just a game-changing, precise cutting and engraving machine.

3 Years Warranty

We stand behind our laser machines with an unprecedented machine and parts warranty.

24/7/365 Tech Support

Immediate assistance, expert guidance, and fast troubleshooting to keep your business running smoothly

8 hrs Training

Get up and running fast with personalized 1:1 training from our expert technicians.

Open-Architecture Design

Other Lasers in the Market

Boxed lasers feature a fixed, enclosed design. This restricts them to processing only items that fit within their internal workspace. This makes them unsuitable for larger, bulkier, or irregularly shaped materials that require more room or flexibility.

AP Lazer Patented Design

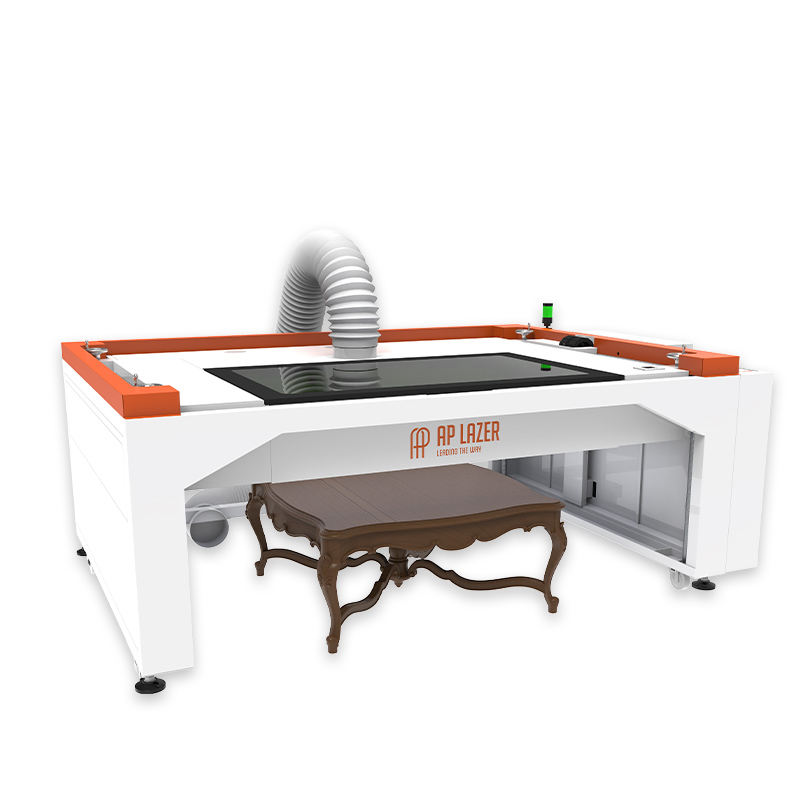

Featuring a patented open-architecture design, allowing for greater versatility in handling both small and large projects. AP Lazer’s low rider technology makes working on bulky or massive items possible.

Add Value to Your Products with Customization Service

Wine barrel before laser engraving Wine barrel after laser engraving

Dual Head Laser Engraver Machine Dimensions

Machine Size 103" L x 72" W x 41" H
Machine Weight 1276 lbs
Z-Table Surface Area 66.5" L x 43" W

BEGIN WITH AP LAZER

Fill out the form below to download our wholesale laser engraver supplier catalog and product information.

Choose the Best Machine Model for Your Business

CO₂ + Fiber

SN624ODLR
Every Material, Every Size, Always Supported Get a Quote →
  •

Business Level

SN4836LR
Great for any business or educational environment Learn More →
  •

Business Level

SN4O24LR
Great for any business or educational environment Learn More →
  •
Compare All Models

Routine maintenance will keep your equipment running smoothly and efficiently. Keep the rails clean and free of debris by wiping them down on a weekly basis and using a 3-in-1 oil. Regularly cleaning the lens and mirrors will prevent damage.

Over time, you must occasionally replace the laser tube. The normal life expectancy ranges with wattage. A 30-watt tube is 1500 hours, 60- and 90-watt tube is 8,000 hours and the 100-watt tube is 10,000 hours.

AP Lazer assembles and ships our machines from our plant in Windsor, Ontario. We exclusively manufacture with high-quality parts that we custom design.

We stand behind the quality and service of our laser machines. All laser machines come with set up assistance, 24/7 technical support and an unrivaled warranty. We inspect and test all AP Lazers before shipping.

As with all laser machines, the tubes, mirrors, and lenses will require replacement with use. We cover our machines with an unrivaled 3-2-1 Warranty*. Three-year parts, two-year tube and mirror, and one-year lens warranty.

*The SN1812 has a slightly different warranty. Ask your representative for more details.
Yes, we offer many financing options. See our Financing page for additional information, or you fill out our Financing Application online to get pre-approved.

Our laser systems are capable of engraving and/or cutting a wide variety of materials. View the Applications Page.

The RDWork v8/ system supports the following formats: Vector format: dxf, ai, plt, dst, dsb, and related formats. Bitmap format: bmp, jpg, gif, png, mng, and related formats.

AP Lazer machines are compatible with Windows® XP/7/8/10 both 32-bit and 64-bit operating systems.

USB connection or USB flash drives can direct transfer files at speeds up to 500 KB per second.
Thanks to removable tops and open architecture, AP Lazer machines accommodate virtually any shape, size, or weight of material.

All AP Lazer machines come standard with accessories and software. These include:

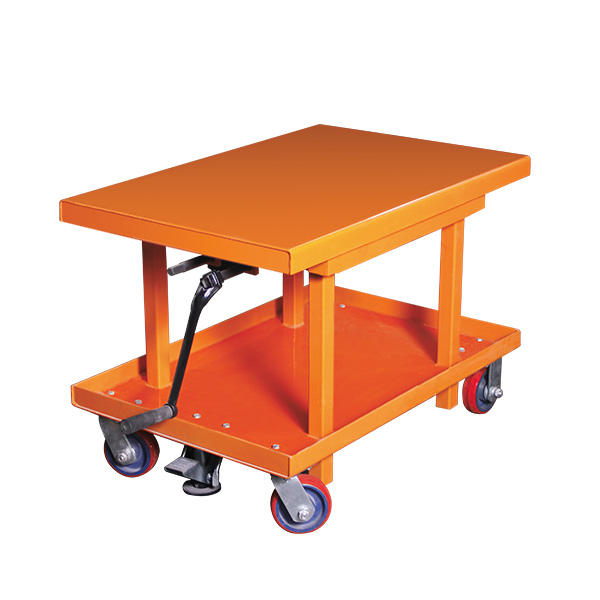

  • A mechanical lift cart

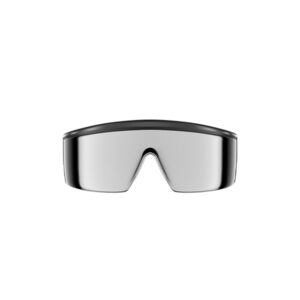

  • Protective eyewear
  • Photo processing and laser software*
  • Laptop

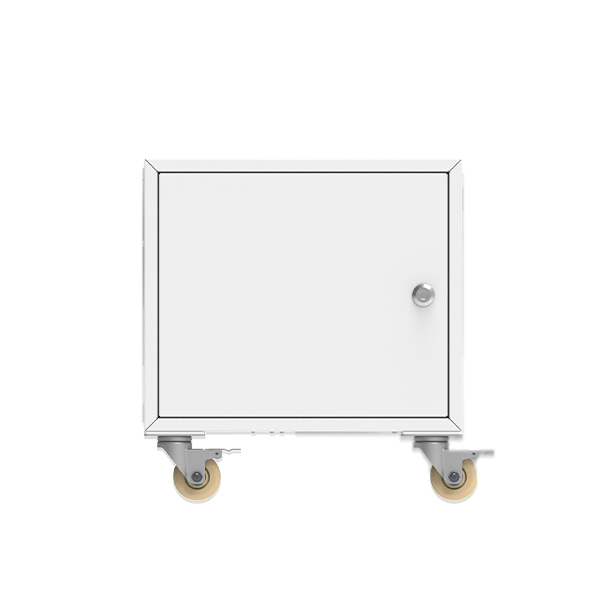

  • Exhaust blower
  • AP rotary tool
  • Air assist system

*All machines include CorelDrawSuite, PhotoGrav, and RD Works software. The models SN1812LR and SN2616LR also include LightBurn software.
Yes! Our set up assistance will help get your laser machine up and running in no time. In addition, we provide detailed manuals, 24/7 technical support, and online videos. We also offer exclusive access to our AP Lazer University online learning center.
Of course not! Though AP Lazer began in the monument industry, our machines can engrave a wide variety of materials. You will be able to cut through thicker pieces of acrylic, plastic, or wood. You can also blast through stone surfaces like brick or granite without any size or weight restrictions.

Unlike its competitors, the AP Lazer system is a versatile three-part machine. Featuring an open-architecture design and Low Rider technology, AP Lazer machines are like no other.

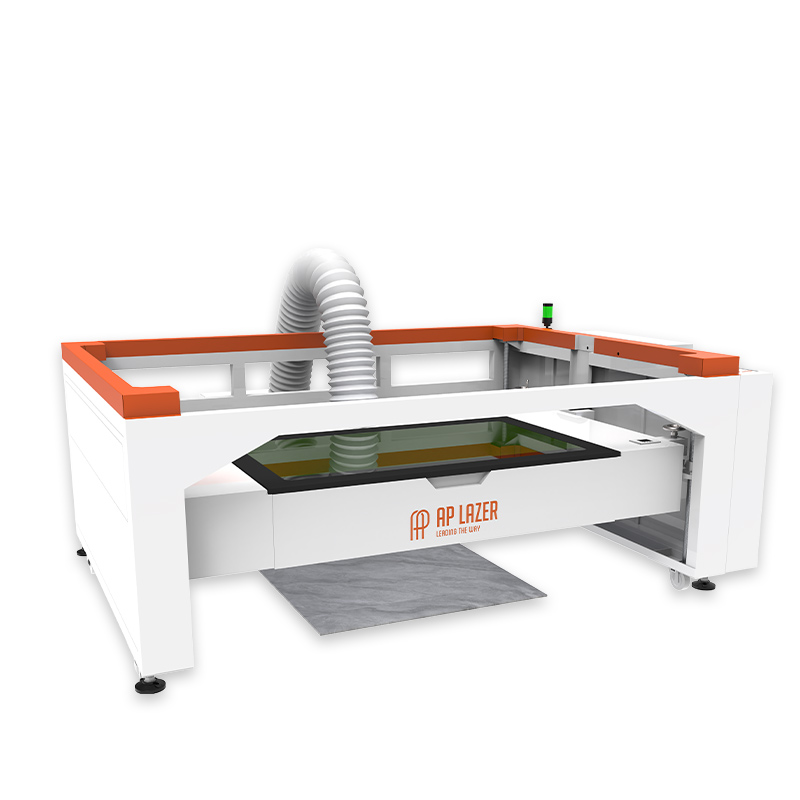

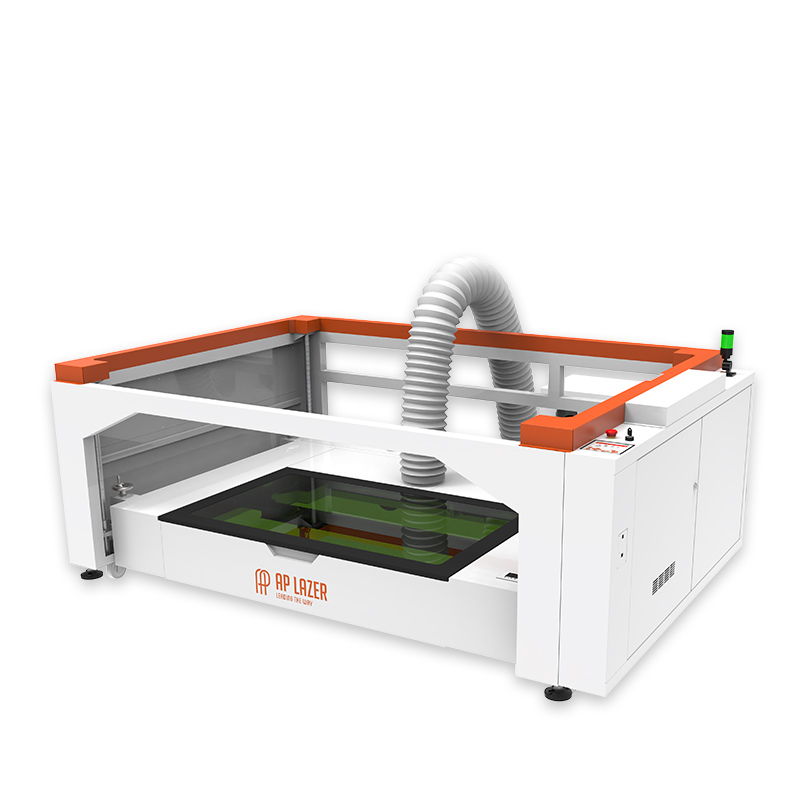

Because they’re so versatile, our machines allow for a variety of uses within a wide range of industries. Keep the laser top on its home base and it functions like a traditional ‘boxed’ laser machine. Remove the top and place it on the utility carriage to roll objects directly beneath the laser area. You can also place it over a conveyor belt.

The EZ-leveling system and automatic sensors allow you to place the top on any flat surface. Just place and engrave.
A laser machine works by directing a powerful laser beam at a precise focal length. Depending on the speed and power set, the laser beam will either remove the surface of the material or cut through it.
